AV-TC40
Purpose
Control of extended protected areas and observation at long distances, recognition of objects at the most remote distances thanks to switchable fields of view. Protection of water areas, especially important objects on the distant approaches to them, large transport hubs. Unprecedented resolution of the video channel, the possibility of a detailed examination of the object without losing a wide field of view (the enlarged image is displayed on a separate screen.

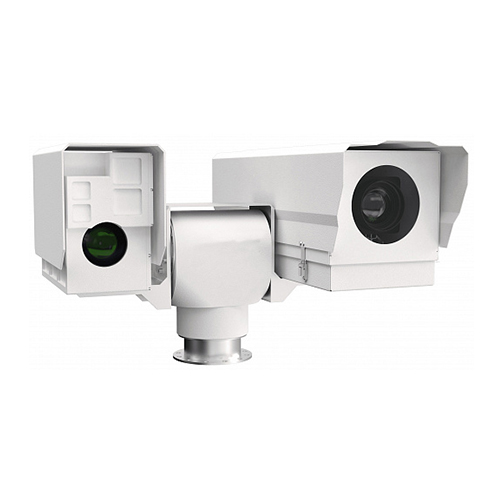

Rotary optical-thermal imaging complex includes:
- Thermal imager based on a cooled matrix with a resolution of 640×512 pixels and a zoom lens with smooth adjustment of the focal length from 40-240 mm
- Full HD video camera with a resolution of 1920×1080 pixels and a 30x optical zoom lens (F12-360mm)
- Intelligent PTZ device with adjustable horizontal speed of rotation of cameras 1º/sec to 60°/sec and azimuth rotation range 0°-360°
- Lens: motorized, continuously switchable fields of view, motorized, continuously adjustable focal length
- The high resolution of the matrix allows you to get a clear image
Description
A highly professional and reliable solution to complex security problems. It is optimally suited for detecting and tracking an object at long distances (automatic – 24.5 km, human – up to 8 km). Identifies distant targets on particularly extended objects. Effective for scanning in all weather conditions.
Logistics centers
Sea and river areas
Oil refineries
Border Guard
Fuel and energy complex
Power plants
Characteristics of the thermal imaging channel
Matrix Resolution | 640×512 |
Matrix type | 15.00 |
Lens type | Motorized, with smooth change of fields of view |
Focus | 40-240 |
Horizontal viewing angle | 14°-2° |
Temperature Sensitivity (NETD) | ≤35mK |
Vehicle analysis | 24500 |
Human analysis | 3000 |
Vehicle detection | 3000 |
Human detection | 1000 |
Vehicle identification | 3000 |
Human identification | 1000 |
Display speed | 25 fps |
General characteristics
Sensor type | Cooled |
Control | Ethernet 10/100, RS-485 |
Supply voltage | AC24/DC24/ 220 ± 10% (to be agreed upon when ordering) |
Power consumption | no more than 200 W |
Protection class | IP66 |
Working temperature | -40°~+50° |
Weight, kg | Up to 50 |
Permission | 1920 x 1080 pix |
Focus | 12-360 |
Minimum illumination | Colour: 0.04 lux / B/W: 0.03 lux |
video signal | H.264, MJPEG |
Characteristics of the rotary device
Azimuth rotation range | 0°/s ~ 360°/s |
Elevation rotation range | -45°/s ~ +45°/s |
Rotary position control | Supported |
Vertical rotation speed | Adjustable 1°/s to 60°/s |
Horizontal rotation speed | Adjustable 1°/s to 30°/s |
